Before & After: Vaughn Rod Breakdown Machine

Posted by on Wed, Jan, 18, 2012


Wire & Plastic Machinery received an order for a fully reconditioned Vaughn 10 Die Rod Breakdown Machine with a 30" Syncro DFH Spooler. As you can see, the rod machine was in need of some major work and our engineers were able to restore it to like new condition with all new electrics.

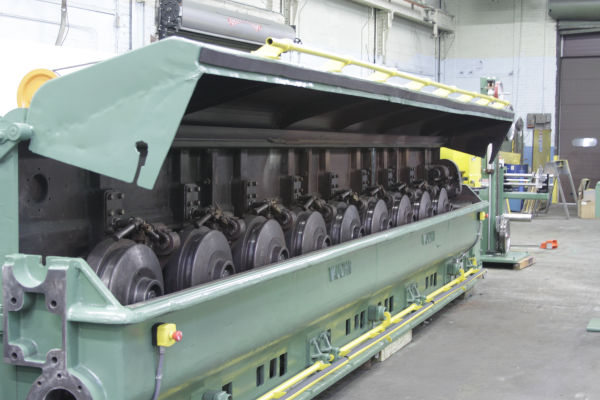

Vaughn Rod Machine After resized 600


Before & After

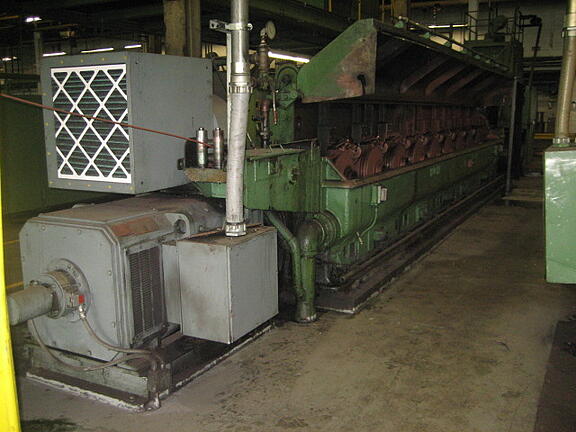

Vaughn Rod Breakdown Machine Before

Vaughn Rod Machine After

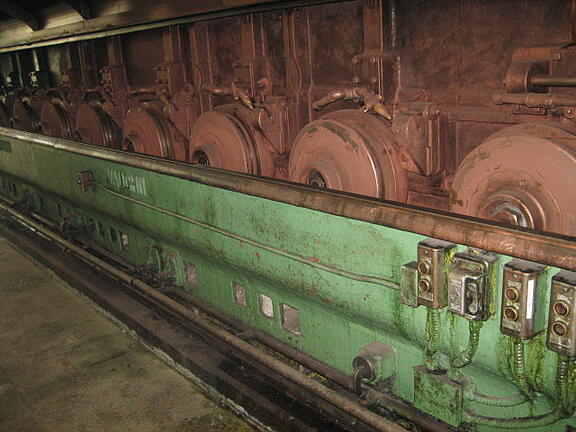

Vaughn Breakdown Machine Before 3

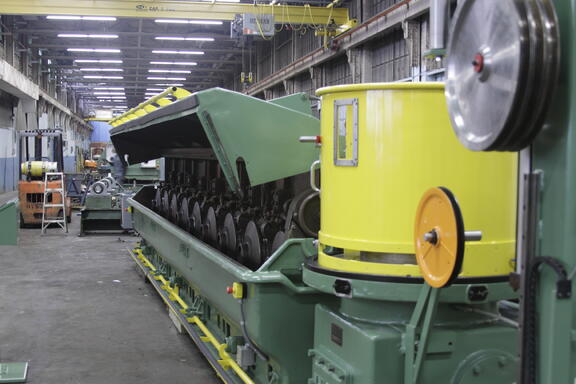

Vaughn Rod Mill

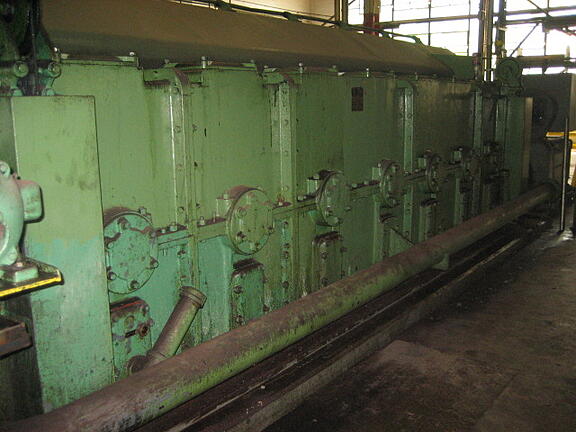

Vaughn Breakdown Machine Before Back

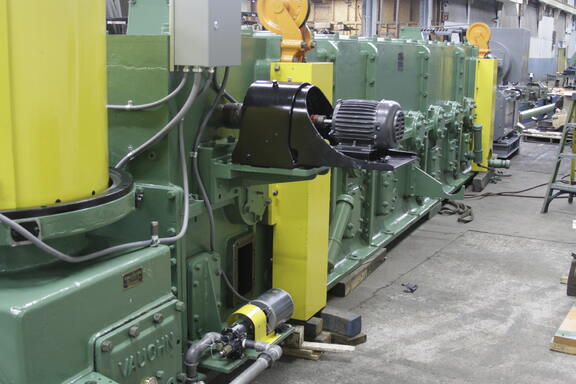

Vaughn Rod Machine Back

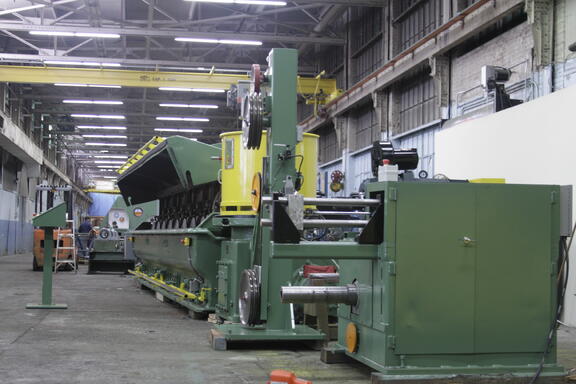

The complete line with a Vaughn Rod Breakdown Machine and Syncro DFH Spooler:

Vaughn Rod Machine with Syncro DFH Spooler


Our rebuilding processes included the following steps:

Vaughn 10 Die Rod Breakdown Machine:
Disassembled, steam cleaned, primed and painted to customer specification
Rotated all worm gears that drive each drawing capstan
Installed New bearings throughout the machine
New bearings in the slide door of the pullout capstan were installed
Installed New heat exchanger
New oil circulation pump was installed
New wire guide arm was installed
New brake pedal was installed

30” Syncro DFH Spooler:
Disassembled, steam cleaned, primed and painted to customer specification
New bearings installed throughout
Traverse was rebuilt
New hydraulic cylinder was installed on traverse
New shaft assembly
New expanding rings on shaft were installed to suit customer reel
New 30 HP AC Vector Motor was installed
New hydraulic and air lines were installed

Electrical:
New NEMA rated enclosure with 400 HP SSD/parker Drive
All new wiring and machine logic
Rebuild existing  400 HP DC Motor
New 30 HP SSD/Parker Vector drive for spooler
New operator console for line controls



Most of the equipment we offer for sale can be reconditioned to customer specifications
Contact us today if you see a machine on our site that you would like to have cleaned, painted, upgraded, or completely rebuilt. Our engineering teams have over 25 years of experience in working on all types of wire, cable, and optical fiber equipment.
